Getting Started

Inexpensive, easy to install and simple-to-use, the Linksys SPA-1001 VoIP adapter connects to your standard telephone and high-speed Internet enabling Internet phone service for your home.

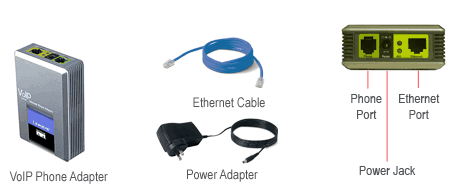

What’s included: VoIP Telephone Adapter, Ethernet Cable, AC Power Adapter

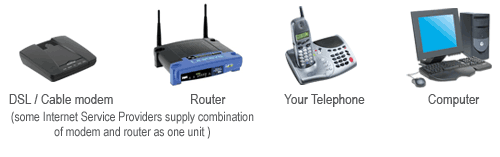

Equipment you will need:

Broadband Connection: DSL, cable modem, or other high-speed Internet connection

Router: To share your broadband connection with more than one device.

Traditional Analog Telephone

To use enhanced features, you will need: Computer & Web Browser: MS Internet Explorer or FireFox.

Installing the VoIP Adapter

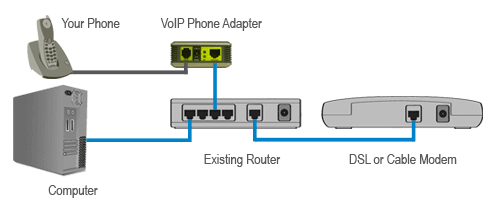

In order to start using your ABC-VoIP service, you will need to install your VoIP Phone Adapter. Below is the diagram of finished installation. Please read the following VoIP setup instructions carefully.

1. Before you begin make sure that your computer, modem, router and the ABC-VoIP adapter are turned off (for modems without an off/on switch just unplug the power to the unit).

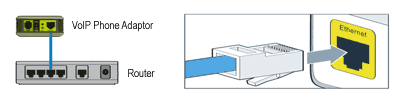

2. Connect the ethernet port on the VoIP phone adapter to a spare ethernet port on your router (the same type of port your computer is connected to) using the ethernet cable included in the kit.

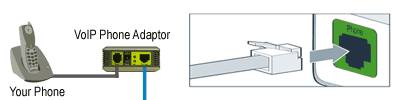

3. Connect your telephone to the phone port on the VoIP phone adapter using a standard telephone cable.




4. Turn on your modem and router and wait for them to start up (typically, when all lights have turned green.)


5. Plug the power adapter into the power jack on the ABC-VoIP adapter and then into an electrical outlet. Wait for few minutes and than pick up the telephone handset and listen for a dial tone. This indicates that the VoIP phone adapter is working;

You are now ready to make calls!
